MARANTZ Model 40n Integrated Network Amplifier

Digital heart and analogue soul.

The MODEL 40n gives you Hi-Res sound for digital music streaming from Spotify, Amazon Music HD, TIDAL and more, as well as your own digital music library via AirPlay 2, Bluetooth and HEOS®. Ensure first-class TV sound via HDMI ARC (Audio Return Channel). Experience all of this with Marantz' superior analogue amplification - for rich, warm and spacious sound.

Just connect speakers.

Optimized for streaming for use with Spotify, TIDAL, AirPlay 2, Bluetooth and more - HEOS® Built-in makes it possible

Professionally engineered and tuned for the most musical sound

Music with power: 100 watts per channel (RMS, 20Hz - 20kHz, 0.07% distortion, 4 ohms) for your favorite loudspeakers

Voice control with Amazon Alexa and Apple Siri

Noble industrial design that cuts a fine figure in any environment

HDAM amplification preserves every detail of your favorite music

The integrated MM phono preamp makes connecting a turntable a breeze

Fill your home with the most musical sound. You can listen to the same song everywhere or a different song in each room

Available in black and silver gold

Technical Specifications

Features

Channels           2

Current Feedback Topology  o

Full balanced circuitry architecture                  -

Double Mono Power Amp construction         -

Phono EQ: Standard / Marantz Musical / Marantz Musical Premium          - / o / -

Digital in: USB-B / optical / coaxial / USB-A                  - /1 / 1 / 1

Sample Rate digital In                192 kHz / 24-bit

USB-A: DSD / WAV / FLAC / AIFF / ALAC        <=5.6 / 192 / 192 / - / 192

USB-B DSD Audio Streaming (DoP): DSD2.8 / DSD5.6        -

USB-B PCM sample rate          -

DAC chip            ES9016K2M

Asynchronous mode rear USB             -

Bit-perfect transmission          -

Ground isolator for DAC Mode operation     -

Tuner: DAB / DAB+ / FM (RDS)               -

Bluetooth / aptX / NFC               o / - / -

Streaming audio from PC        o

Wi-Fi / Wired LAN         o / o

Internet radio  o

AirPlay 2              o

Roon Tested     o

Spotify Connect* / Tidal* / Deezer* / others *            o / o / o / o

Amazon Prime Music* / Pandora*     o / -

HEOS Multiroom and Streaming        o

Voice Control - Works with Amazon Alexa   o

Voice Control - Google Assist / Apple Siri    o

Voice Control - Microphone built-in -

DSD-Audio network streaming            o

Lossy formats MP3 / WMA / AAC        o / o / o

Lossless formats: DSD / FLAC HD 192/24 / ALAC 96/24 / WAV 192/24 / AIFF      o / o / o / o / -

Gapless Playback        o

Remote APP: iDevice / Android           o / o

Analog Mode   -

HDAM version                  SA3, SA2

Power Transformer: Toroidal / El         o / -

High Grade Audio Components          o

Customised Components      o

Symmetric PCB Layout             o

Aluminium extrusion heat sink            o

Copper Plated Chassis             -

Balance / Bass / Treble / Loudness  o / o / o / -

Double Layerd Bottom Plates               o

Low Noise OLED display          o

Others

Marantz Musical Digital Filtering        o

Linear Drive Power Supply     o

Liniear volume control               MUSES 72323

BI-AMP and Multichannel option       -

Shottky diodes                o

Input buffer amp (all inputs / CD only)            - / -

System block shielding: Copper / metal / none        - / o / -

Low noise LCD display              -

Source Direct o

Power Amp direct         o

5mm aluminium top plate      -

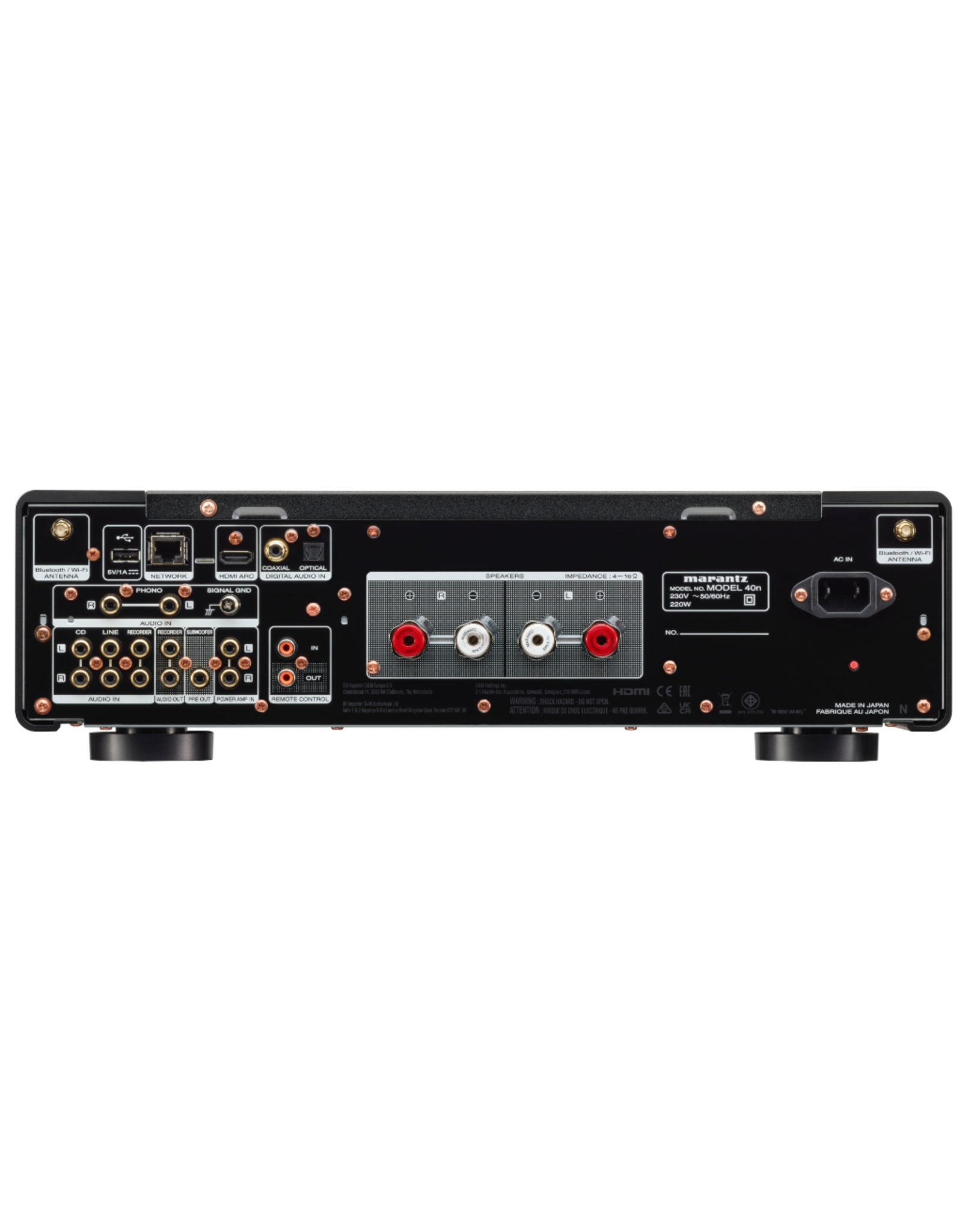

Inputs/Outputs

Audio Inputs    4

Digital in: USB-B / optical / coaxial / USB-A                  - / 1 / 1 / 1

Auto Power On by digital input signal               o

TV remote learning      -

Phono Input: MM / MC               o / -

Audio Outputs                 1

Balanced In / Out         -

Pre-out / Main-in           subwoofer / -

Power Amp Direct IN o

HDMI: inputs / outputs              1 / -

Gold Plated Cinch        o

Speaker A / B  -

Speaker Terminals       Marantz SPKT-1+

Number of terminals 2

D-Bus  o

Floating Control Bus (3.5 mm mono jack x 2)             -

Headphone Out             o

Headphone Gain Control (low / mid / high)                  -

Specifications

Power Output (8 / 4 Ohm RMS)            70 W / 100 W

Frequency Response                  5 Hz-100 kHz

Total Harmonic Distortion      0.02 %

Damping Factor             100<

Input Sensitivity: MM 1.6 mV / 47 kOhm

Input Sensitivity: MC -

Signal to Noise Ratio: MM/MC              87 dB / -

Input Sensitivity: High level   220 mV / 16 kOhm

Input Sensitivity: Balanced High level             -

Signal to Noise Ratio: High level         113dB

Input Sensitivity: Power Amp Direct IN           1.5 V / 15 kOhm

Signal to Noise Ratio: Power Amp Direct IN                 -

General

Available Colors: Gold / Silver / Black / Silver-Gold                - / - / o / o

Metal Front Panel         o

Power Consumption in W       220

Standby Consumption in W  0.3

Auto Power off                 o

Detachable Power Cable        o

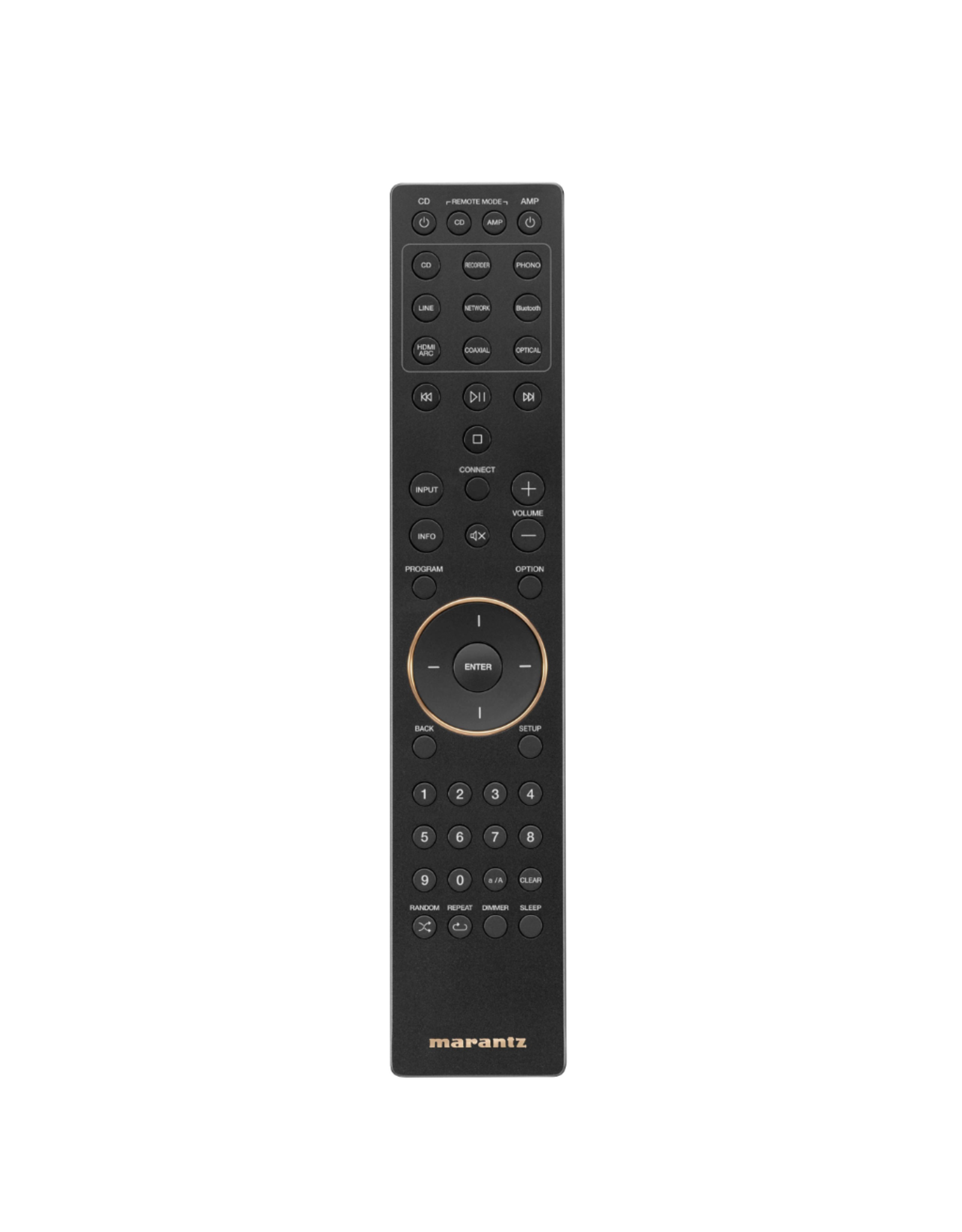

Remote Control             RC005PM

System Remote Function        o

Maximum Dimensions (W x D x H) in mm    443 x 432 x 130

Weight in kg     16.7

Carton Maximum Dimensions (W x D x H) in mm   534 x 522 x 255

Carton Weight (inc. product) in kg     19.6
